 Gas spring are used to apply a door open and force assistance in all applications requiring a convenience and control.
the gas spring is usually mounted to the tail gate or hood / bonnet and make easy of lifting / lowering the coverlet. |
| |
|
|
 |

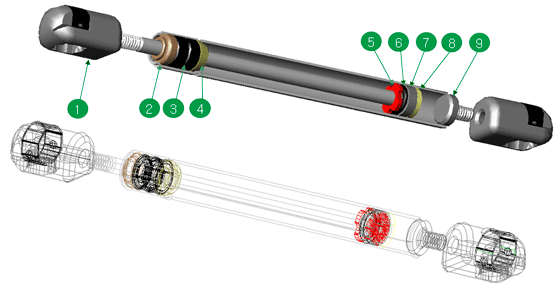

| A gas spring is composed by if sealed tube with piston rod(shaft), piston, oil seal and the
other components. Compressed insert nitrogen gas and minimum operating oil was
included inside of the tube as well. |
 |
| NO |
PART NAME |
MATERIAL |
Q’TY |
| 1 |
Plastic Socket |
PA66+G/F 30% |
2 |
| 2 |
Rod Guide |
phenol |
1 |
| 3 |
Oil Seal |
N B R + S P C C
|
2 |
| 4 |
Seal Stopper |
PA66+G/F 30% |
1 |
| 5 |
Ring Stopper |
S P C C
|
1 |
| 6 |
O-Ring |
N B R |
1 |
| 7 |
Piston |
PA66+G/F30% |
1 |
| 8 |
Piston Stopper |
S P C C
|
1 |
| 9 |
Lower Cap |
S 1 5 C |
1 |
|
| |
